Finishing in the Money: Proper Paint Booth Operation

By Brandon Lowder, Vice President of Auto Refinish, Global Finishing Solutions

There is no question that a paint booth is a large investment for many shops. The best way to protect that investment and to drive your profits is to ensure your booth is running in peak condition. By following proper prep work and painting processes, and paint booth maintenance tips, your booth will last longer while continuing to improve paint job quality and shop productivity.

Prepping for Success

Proper paint booth operation begins before you even enter the booth. The preparation you put into each job plays a critical role in achieving the highest quality results.

First, you should ask yourself if the part or vehicle is coming from storage. If so, pay attention to potential temperature differences between the storage area and the booth. Temperature differences between the part or vehicle and the coating can cause problems with adhesion or gloss and other surface defects.

Before painting, make sure the vehicle’s surface has been properly cleaned of any chemical contaminants it may have been exposed to. In a prep booth, use compressed air to clean loose contaminants. Follow this with a lint-free wipe or tack cloth. For best results, wipe in a unidirectional method from one side or end to the other.

Always handle parts with lint-free gloves during and after prep work. Naturally created oils and particulates from human skin can contaminate part surfaces and create blemishes in the finish. For this reason and because we are continuously shedding small particles of skin, appropriate attire should be worn during prep work and in the paint booth to minimize this contamination. Once your prep work is complete, you’re ready to move the job into the paint booth. But before you open the doors to your booth, make sure it is operating in spray mode; this ensures that any airborne contaminants will be drawn to the exhaust filters. Also keep the opposite entrance doors closed as the vehicle enters or exits the booth.

Improving Your Spray Zone for Higher Quality Results

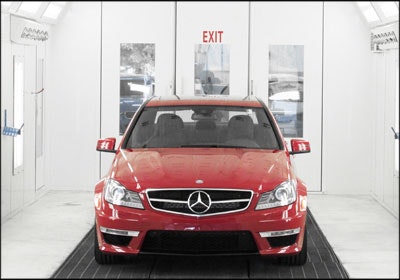

Once you are in the booth, maintaining an efficient spray zone is key to achieving the best results. In a downdraft booth, center the vehicle over the grating to promote proper airflow. In crossdraft, side downdraft or semidowndraft booths, place the vehicle in the center of the booth so that you have plenty of room to move around. All items to be painted should be placed within the surrounding spray zone.

When masking, make sure you are not blocking the grated areas. Extend masking paper or plastic at most 6 inches below the vehicle and mask wheel wells and wheel covers only if they are within the area being sprayed. The remaining wheel wells should be open to create a consistent air path.

To keep contamination off the vehicle, you also want to make sure the booth’s air pressure is correctly balanced. A slightly positive pressure will ensure the cleanest paint job. That pressure causes a layer of slowmoving air—known as boundary air—to form on the vehicle surface. Boundary air shields contaminants from the painted surfaces.

If the booth has too much positive pressure, more air is being introduced to the cabin than can be removed. This causes contamination from the walls and floors to enter the spraying zone. Negative pressure, on the other hand, reduces the shield of clean air that is created and draws in contamination from door leaks or booth openings. If you need to make any pressure adjustments, do so when the vehicle is in the cabin and all of the doors are closed.

In addition to air pressure, booth temperature is also important. Your spray temperature should remain constant, ideally between 72 and 75 degrees. As temperatures increase, airflow slows down. Paying attention to each of these factors will help you produce the best possible paint finish.

When it’s time to paint, apply your base and clear coats according to the paint manufacturer’s recommendations. After the necessary coats have been applied, allow the paint booth to flash at least three minutes before changing over to the cure cycle. This allows any clear overspray in the air to be removed, providing a clean atmosphere for curing. After the bake cycle, wait at least five minutes for the booth to cool down before removing the vehicle. Do not shut off the paint booth between paint jobs; any contamination in the booth will become airborne and land in the paint.

Maintaining Optimal Booth Performance

Often, a contaminated paint job is due to a dirty or poorly maintained booth. A few simple booth maintenance steps will help create a safe and efficient working environment for higher quality paint jobs. They will also extend the life of your paint booth.

Booth cleanliness begins and ends with your intake and exhaust filters. Changing these filters on a regular schedule will ensure safe and proper airflow. Your paint booth or filter supplier can work with you to design an effective schedule to maintain your booth’s performance while keeping cost efficiency in mind.

It’s also important to keep dust out of your booth. When not in use, keep the paint booth doors closed. When you do need to open the booth doors to bring an object in, make sure the booth is on and running. Other tips include not leaving unnecessary items in the booth, limiting traffic in and out of the booth, never sanding in the booth and never spraying without a lint-free painter’s suit and head cover. Painting attire should be stored in a clean area.

The painting process often leads to overspray that needs to be carefully cleaned. Overspray can end up on walls, floors, paint guns and air hoses. If you don’t take proper care of it, paint can become airborne or flake off onto painted surfaces. Whatever method you choose for cleaning, make sure it is approved for use in hazardous locations like your booth. A great option for this is booth protection paper, which goes on the floor and walls. Once dirty, the paper can easily be removed and new paper laid down. It makes for easy and quick removal of overspray and is even available for covering light fixtures.

In the end, proper booth operation and maintenance is key to achieving the best finish possible for each vehicle while also increasing shop throughput and booth longevity. It begins before the vehicle even enters the booth and doesn’t end when the spray gun is put down. Emphasizing proper prep work, optimizing your spray zone in the booth and focusing on booth cleanliness and maintenance will build good habits which will elevate the quality of the work coming from your shop now and into the future.
